Product Details:
Payment & Shipping Terms:
|
| Tonnage (ton): | 22 | Bucket Capacity (m3): | 1 |
|---|---|---|---|
| Engine Model: | Komatsu SAA6D102E-2 | Number Of Cylinders (pieces): | 6 |
| Maximum Digging Radius (mm): | 9270 | Maximum Excavation Depth (mm): | 5825 |
| Maximum Excavation Height (mm): | 9665 | Maximum Loading Height (mm): | 6715 |
| High Light: | Komatsu PC220-7,PC220-7 Second Hand Diggers,22T Second Hand Diggers |
||

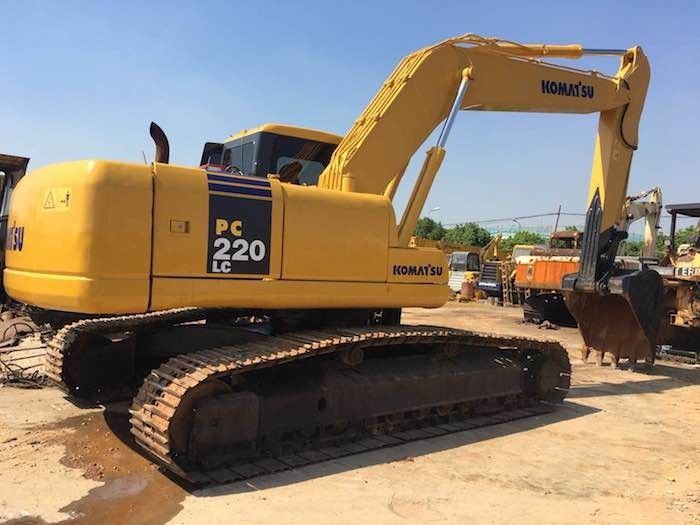

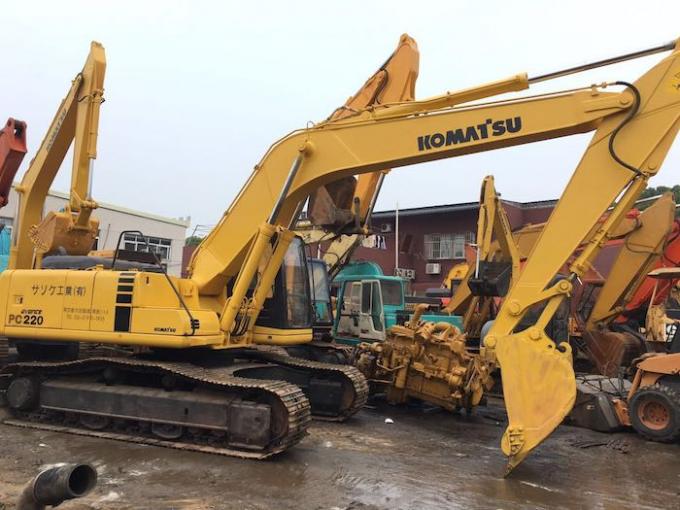

22T Stick Length 3045mm Komatsu PC220-7 Second Hand Diggers
| Bucket | backhoe |
| Tonnage (ton) | 22 |
| Machine working weight (kg) | 22840 |
| Bucket capacity (m3) | 1 |
| Boom length (mm) | 5850 |
| Stick length (mm) | 3045 |
| performance | |
| Swing speed (rpm) | 11.7 |
| Walking speed (km/h) | 3.1/4.2/5.5 |
| Climbing ability (%) | 70/35° |
| Bucket digging force (kN) | 172 |
| Stick digging force (kN) | 129 |
| engine | |
| Engine model | Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 125/2100 |
| Displacement (L) | 5.883 |
| Number of cylinders (pieces) | 6 |
| Bore diameter × stroke (mm) | 102 × 120 |
| Cooling method | water cooling |
| Working range | |
| Maximum digging radius (mm) | 9270 |
| The maximum digging radius of the stop surface (mm) | 9070 |
| Maximum excavation depth (mm) | 5825 |
| Maximum excavation height (mm) | 9665 |
| Maximum loading height (mm) | 6715 |
| Maximum vertical excavation depth (mm) | 4750 |
| Maximum excavation depth (mm) | 5825 |
