| Machine Working Weight: | 31200kg | Bucket Capacity: | 1.4m3 |
|---|---|---|---|
| Boom Length: | 3185mm | Name: | Komatsu 30 Ton Excavator |
| Rated Power (Kw/rpm): | 180/1900 | Maximum Digging Radius: | 11100mm |
| High Light: | PC300-7 komatsu 30 ton excavator,PC300-7 Used Komatsu Excavator,1.4m3 Used Komatsu Excavator |
||

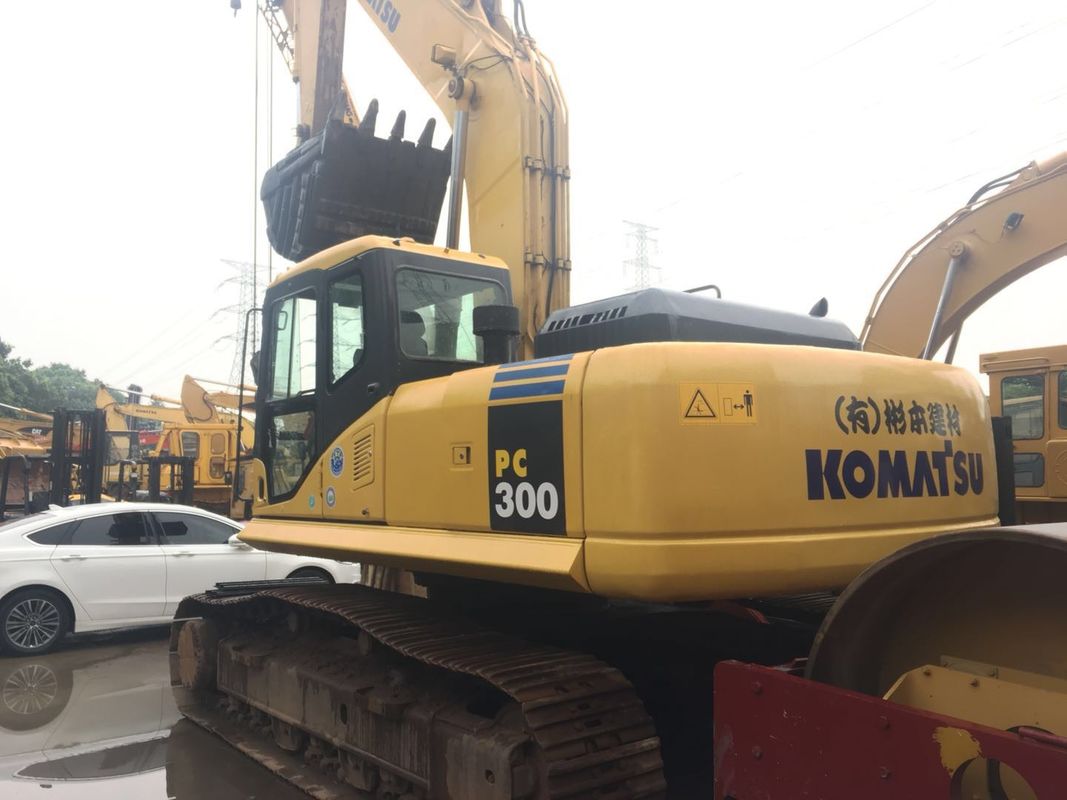

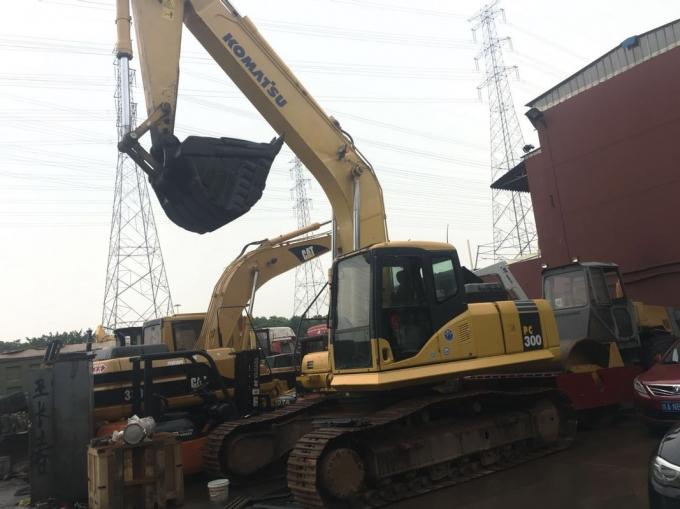

1.4m3 Bucket 30 Ton PC300-7 Crawler Used Komatsu Excavator
Good Performance Komatsu PC300-7 excavator for sale
Machine working weight (kg): 31200
Bucket capacity (m3): 1.4
Boom length (mm): 3185
Stick length (mm): 6470
Performance
Swing speed (rpm): 9.5
Walking speed (Km/h): 3.2/4.5/5.5
Climbing ability (%): 70/35°
Grounding specific pressure (Kpa): 63.7
Bucket digging force (kN): 227
Stick Digging Force (kN): 171
engine
Engine model: Komatsu SAA6D114E
Rated power (Kw/rpm): 180/1900
Displacement (L): 8.27
Number of cylinders: 6
Bore diameter × stroke (mm × mm): 114mm × 135
Cooling method: water cooling
Working form: 6 cylinder, water cooling, direct injection, turbocharged, mechanical full speed control
Hydraulic system
Main pump maximum flow (L/min): 535L/min |
Walking hydraulic motor type: Axial plunger type × 2
Slewing hydraulic motor type: Axial plunger type × 1 |
Walking hydraulic circuit (Mpa): 37.3
Rotary hydraulic circuit (Mpa): 27.9
Control hydraulic circuit (Mpa): 3.2
Boom cylinder - number × bore diameter × stroke (mm): 140 × 1480 × 100
Stick cylinder - number × cylinder diameter × stroke (mm): 160 × 1825 × 110
Bucket cylinder - number × cylinder diameter × stroke (mm): 150 × 1285 × 110
Is the hydraulic crushing line standard: No
Oil capacity
Fuel tank (L): 605
Hydraulic tank (L): 188
Engine oil change (L): 35
Coolant (L): 32
|
Body size
Total transport length (mm): 11140
Total transport width (mm): 3190
Total transport height (mm): 3280
Cab full height (mm): 3130
Board width (mm):
Counterweight ground clearance (mm): 1185
Track grounding length (mm): 3700
Total track length (mm): 4625
Track shoe width (mm): 600
Track total width (mm): 3190
Track gauge (mm): 2590
Minimum ground clearance (mm): 500
Minimum working radius of the front working device (mm): |
Maximum height at minimum radius of gyration (mm): |
Back end radius of gyration (mm): 3450
Working range
Maximum digging radius (mm): 11100
Maximum digging radius of the stop surface (mm): 10920
Maximum excavation depth (mm): 7380
Maximum excavation height (mm): 10210
Maximum unloading height (mm): 7110
Maximum vertical excavation depth (mm): 6480
Maximum excavation depth (2.5 m level) (mm): 7180
| Boom | Not any damaged, enough strong to work |
| Turbo | original turbo ,no heavy smoking after engine turn on |
| Cylinders | 6 cylinders |
| Leading time | About 7 work days after u place order |
| Shipping term | Cargo/Ro-ro vessel /40feet-rack-flat |
| Delivery time | Deponds on the destination port, It will cost 15-35 days from shanghai depart port to destination port. |
| Company experience | Mre than 20 years in this field |
| Payment terms | 30%T/T in advance, 40% before loading, 30% after copy B/L. |
| Market | 1. Africa: GHANA ,CAMEROON ,Nigeria ,Kenya ,South Africa, Congo, Tanzania, Mozambique ,Zimbabwe,ETC. 2. Asia :Iran ,Oman ,Pakistan ,Qazaqstan , Thailand, Malaysia, Cambodia ,Vietnam ,philippines etc 3. South America: Ecuador, Bolivia, Chile, etc. Also some buyers from USA &EUROPE, JAPAN, AUSTRALIA, ETC. |
